Wave penetration study Port of Sines, Portugal
Wave penetration study
Transgás Atlântico requested Svašek Hydraulics to conduct a wave study on the relation between the wave height at the LNG berth and the offshore wave buoy that is operated by the Port of Sines Authority APS.
The wave energy from the offshore buoy location is transferred to the LNG berth using the mathematical model HARES. This model includes all relevant wave processes that occur in harbour areas, like refraction, diffraction and reflection of waves at slopes and quays. The model results show the wave height ratio’s for different wave directions and periods and cover all likely conditions that may occur in the Sines area.

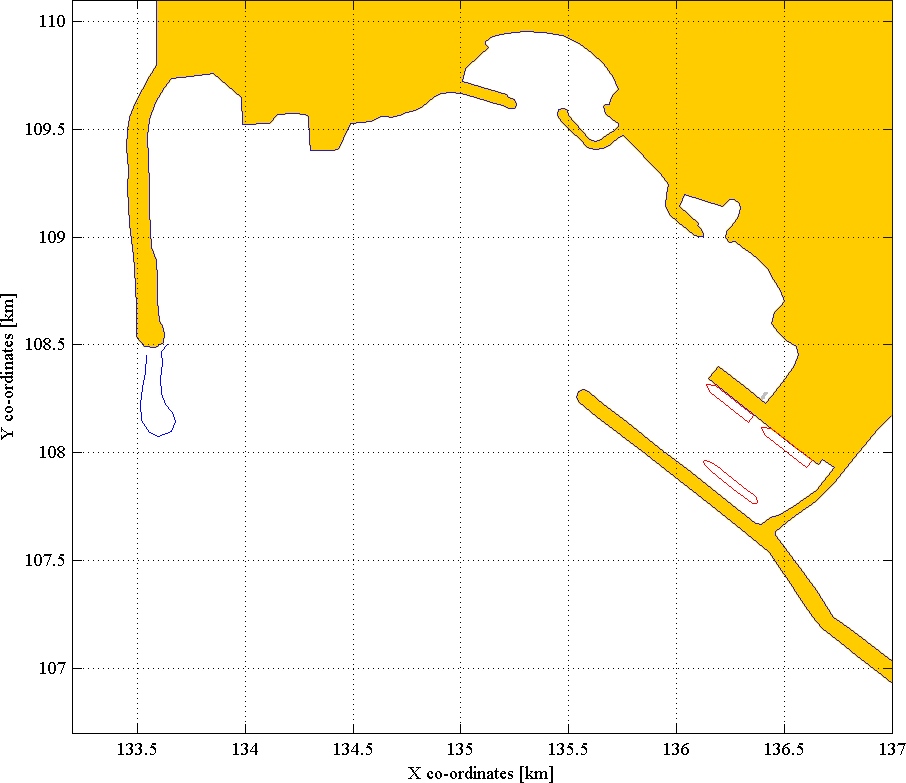

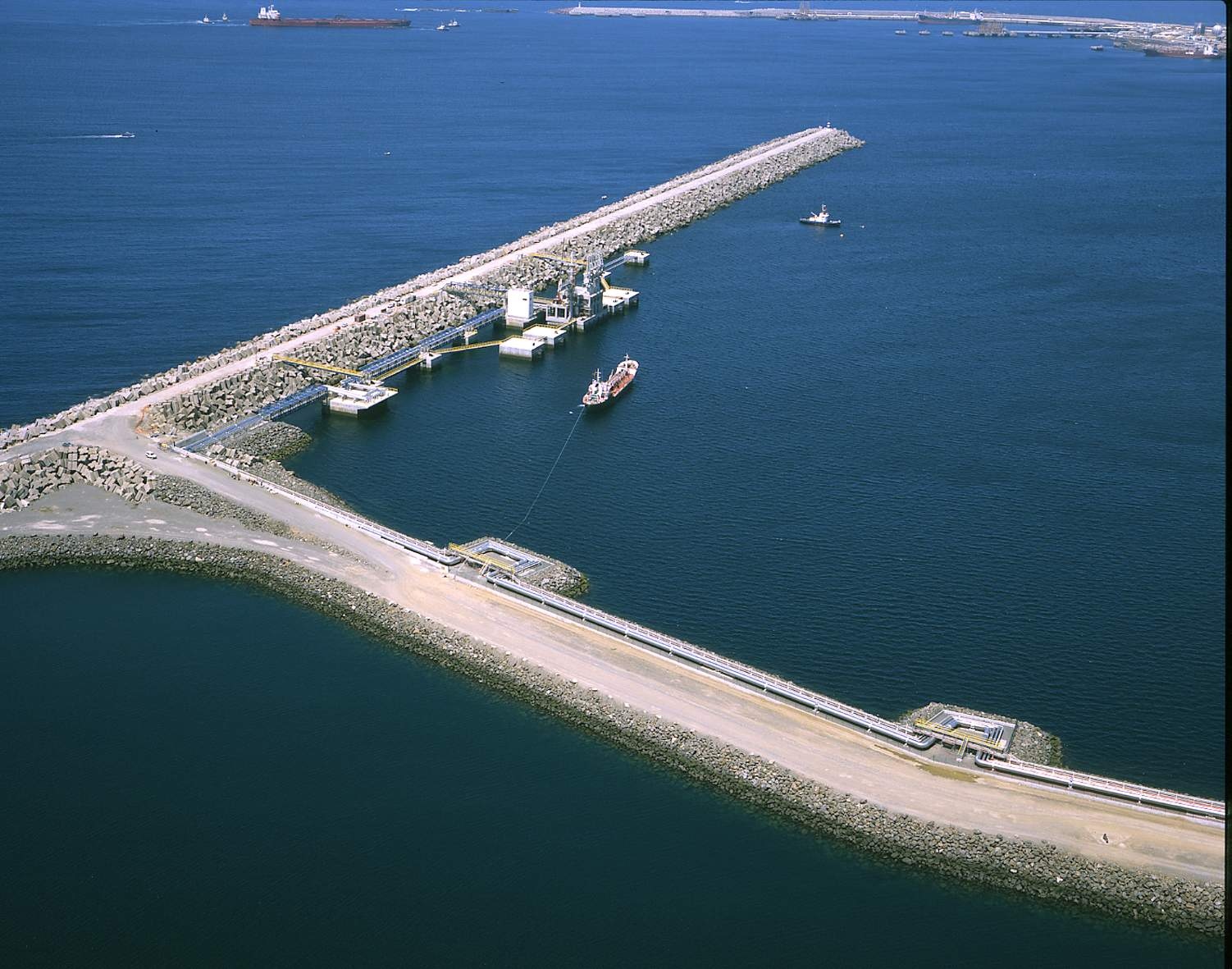

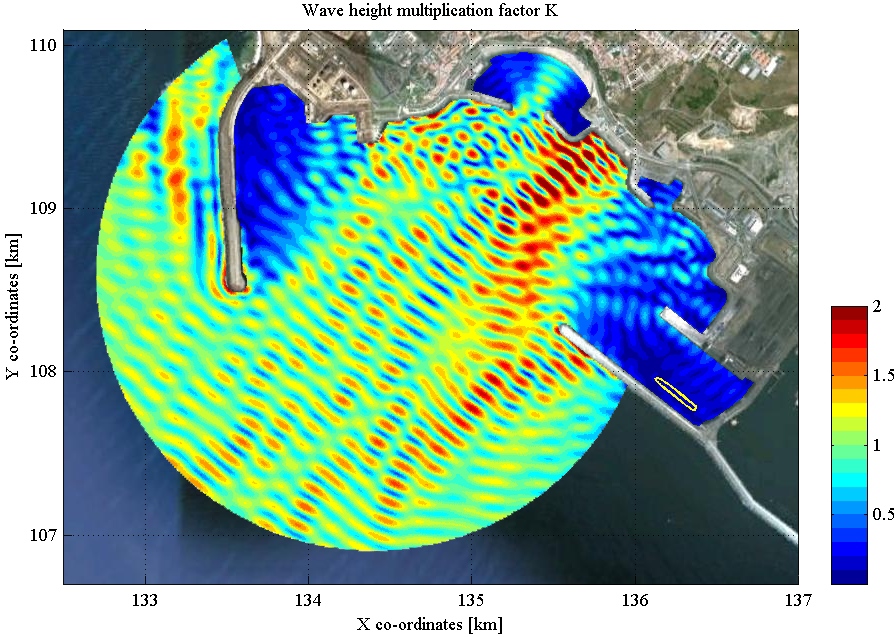

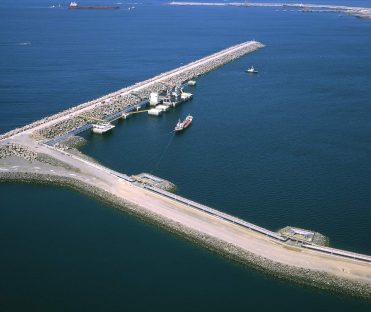

The figures on the right hand side show a photo of the LNG berth and an overview of the port. The figure below gives the result for a typical wave period and direction. The figure shows the wave height multiplication factor K on a scale from 0 to 2. This factor is the ratio between the wave height in the model area (H) and the wave height at the boundary of the model area (H0), so K = H/H0.
