Optimisation connection Lek channel to the River Lek

Services:
Development WAQUA and FINEL model of Lek area, morphological study, hydraulic study.
Client:
Rijkswaterstaat
Location:
Connection of the Lek channel to the River Lek, near the city of Nieuwengein.
Date:
2000

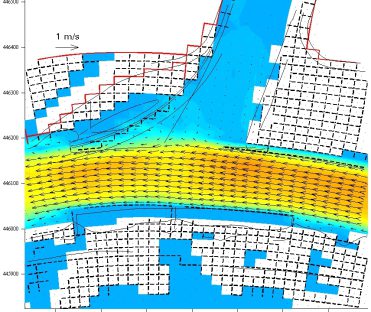

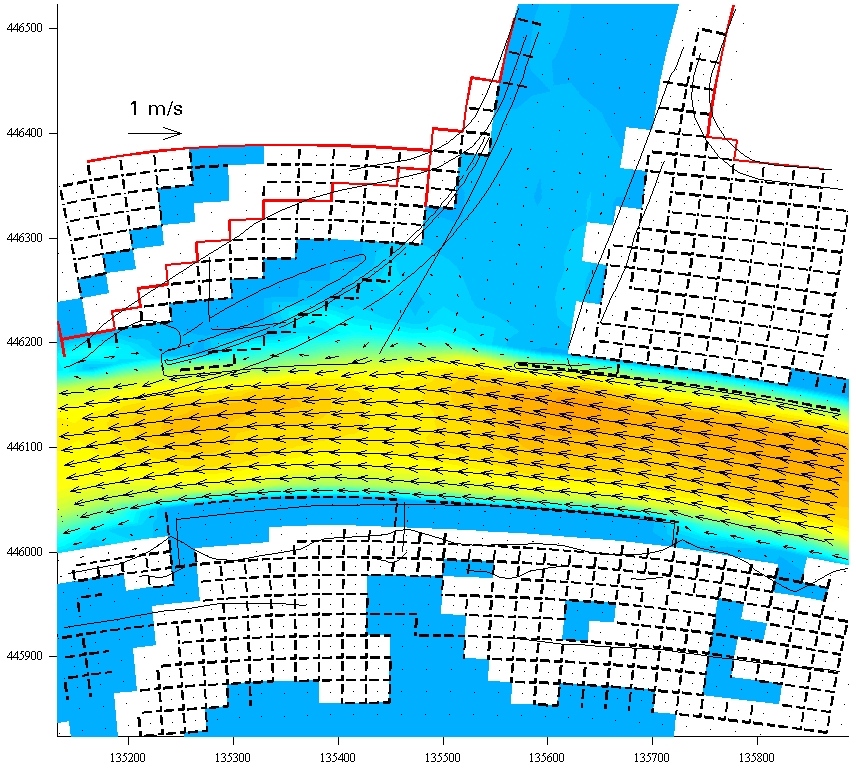

To improve the connection of the Lek canal to the River Lek the hydraulic and morphological effects of several alternative junctions were investigated by Svašek Hydraulics. For the modelling of the hydraulic effects two different 2DH models were used: WAQUA and FINEL.

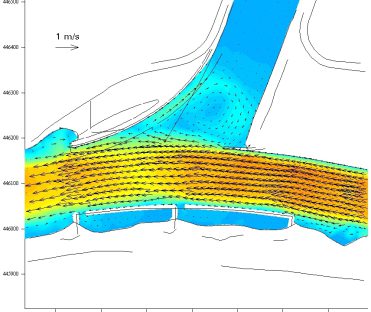

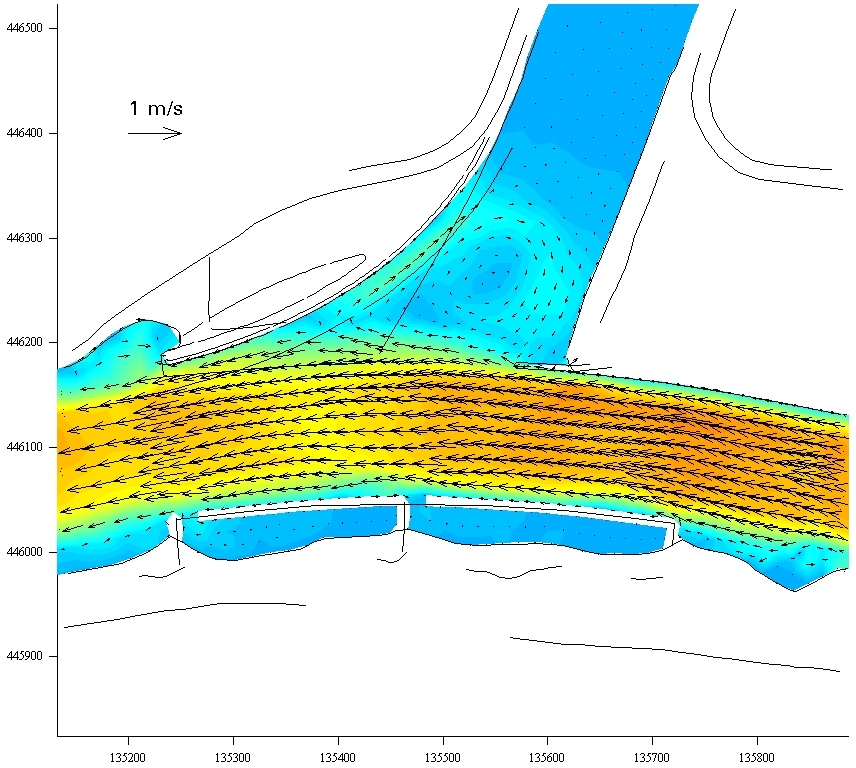

Both models were calibrated using ADCP current measurements in several lines across and parallel to the river. FINEL showed better results and was further used as the design tool for the hydraulic design.

The hydraulic design comprises the development of eddies in the entrance of the Lek cannel and the impact of these eddies on the maintenance dredging volumes.

Besides the hydraulic study a morphological study was executed to determine the impact of the several junction configurations on the river bed.
